CAT Pumps 7126 Easy Start Valve - 8 GPM, 4050 PSI, Inlet 3/8 Inch Male NPT, Barb 1/4 Inch
Brand:
Mfr. Model #:
7126
KR Part #:
PU7126
Weight:
0.29 lbs
(0)An easy start valve with an opening pressure of 105 PSI. Designed to make pulling the start cord easier by relieving built up pressure. Tolerates a maximum pressure of 4050 PSI and flow rate of 8 GPM.
Prop 65
Technical Specifications
Max GPM: 8
Inlet Port: 3/8 inch
Outlet Port: 1/4 inch
Max PSI: 4050
Max Temperature: 176 degrees F
Product Description

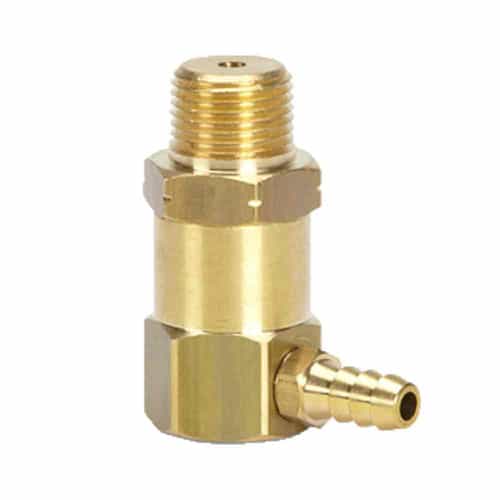

3/8" NPT - Brass Easy Start Valve
The CAT Pumps 7126 Easy Start Valve is used to make starting your pressure washer easy. Valve is designed to relieve built-up pressure in the pump that causes the pull cord to be difficult to operate. Opening pressure is set at 105 PSI. Equipped with a stainless steel ball, seat, and spring for superior corrosion resistance. Handles a maximum flow rate of 8 GPM and pressure of 4050 PSI.Specifications:
- Maximum Flow: 8.0 GPM
- Maximum Pressure: 4050 PSI
- Opening Pressure: 105 PSI
- Maximum Temperature: 176°F
- Inlet Port: 3/8" NPT(M)
- Barb: 1/4"
- Material: Brass
- Dimensions: 1.93 x 0.87 x 1.63"
- Allows engine-driven pressure washers to start more easily by relieving built-up pressure in pump.
- Bypasses pump discharge line pressure during engine startup.
- Automatically closes once engine is running.
- Bypass routing either to the pump inlet or to a drain.
- Stainless steel ball, seat and spring provide corrosion resistance, positive seating and long life.
