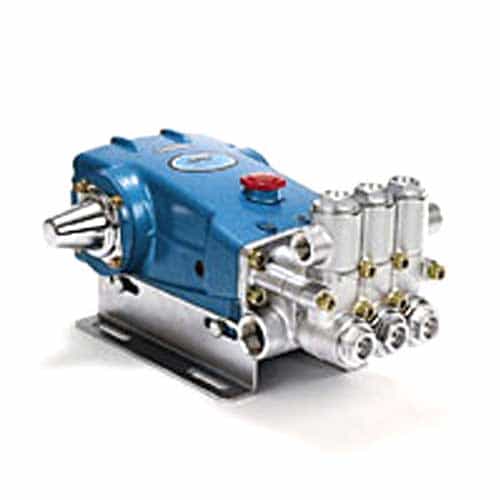

CAT Pump 2510 Plunger Pump, 20 GPM, 2000 PSI
Brand:
Mfr. Model #:
2510
KR Part #:
PU02510
Weight:
85.10 lbs
(0)The most popular pumps for self-service bays, multi-gun and multi-nozzle systems, and industrial high pressure use! 25 Frame forged brass model plunger pump is dependable and long-lasting. Brackets not included.
NOTE: This pump does NOT come with oil
Prop 65
Technical Specifications
Max GPM: 20
Max PSI: 2000
RPM: 1450
Bore: 25 millimeter
Crankcase Capacity: 84 ounce
Inlet Port: 1 1/4 inch
Max Temperature: 140 degrees F
Stroke: 38.5 millimeter
Shaft Diameter: 30 millimeter
Product Description
25 Frame Plunger Pump Model 2510
This CAT 2510 pump has a durable dual V-Packings that are lubricated and cooled by pump liquid. It has a pre-set low pressure seals that provide secondary protection against external leaks and require no packing adjustments. Perfect for use in continuous duty, high pressure applications including Car/Truck Wash, Industrial Cleaning, Pressure Washing, Reverse Osmosis, Water Misting and more. 25 Frame plunger pump has standard seals with alternative options for temperature and chemical compatibility.
Dimensions: 20.16 X 15.04 X 8.66"
- Triplex positive displacement
- Reciprocating
- Forged brass manifolds
- 304SS valve assemblies
- Standard NBR seals and O-rings
- For multi-gun and multi-nozzle and industrial high pressure systems
- Please note that this pump does NOT come with oil - find official CAT Pumps Oil here.
Specifications
- Maximum Flow: 20 GPM
- Maximum Pressure: 2000 PSI
- Maximum Temperature: 160° F
- RPM: 1450
- Inlet Port: 1.25" NPT-F
- Outlet Port: .75" NPT-F
