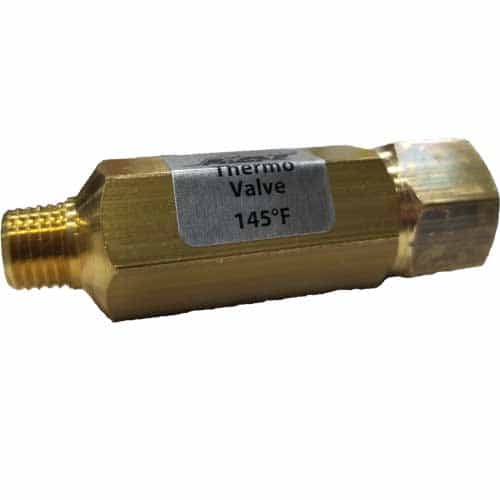

CAT Pumps 7140 Brass Thermal Valve - 125 PSI, 145 Degrees, 1/4 M x 1/8 F
Brand:
Mfr. Model #:
7140
KR Part #:
PU7140
Weight:
0.40 lbs
Availability:
1
Manuals
(0)Brass thermal valve with 1/4" MNPT inlet and 1/8" FNPT discharge port. Used in bypass lines of pressure regulation devices. 145° Fahrenheit max temperature.
Technical Specifications
Max PSI: 125
Inlet Port: 1/4 inch
Outlet Port: 1/8 inch
Max GPM: 25
Max Temperature: 145 degrees F
Product Description
Brass 1/4" Thermal Valve
The CAT Pumps 7140 Thermal Valve is designed to eliminate heat build-up in closed loop pumping systems. The valve is mounted in the bypass line of the pressure regulating device when the by-pass liquid is being recirculated to the inlet of the pump. This is a cost-effective way to protect pumps from excessive heat.
Specifications:
- Maximum Flow Rate: 25 GPM (95 liters per minute)
- Maximum Pressure: 125 PSI
- Inlet Port Size: 1/4" male NPT
- Discharge Port Size: 1/8" female NPT
- Material: Brass
- Maximum Temperature: 145° Fahrenheit
Features:
- Protects pump from premature failure of seals and cups by eliminating heat buildup in closed loop by-
- pass systems.
- Automatically seats during unloader/regulator pressure spikes to prevent liquid bleed.
- Temperature protection without interruption in flow.
- Compatible with systems using either unloader or regulator valves.
- Mount multiple Thermo Valves in-line to handle increased system flow.
- Optional By-Pass hose with Thermo Valve for quick, compact installation.
