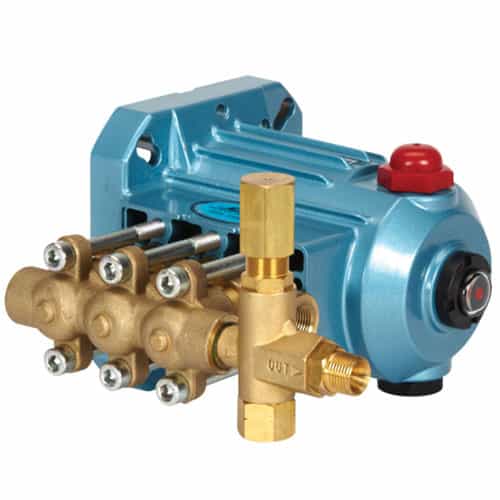

CAT Pumps 2SF30ES Direct Drive Plunger Pump, 3GPM, 1500PSI, 3450RPM
Brand:
Mfr. Model #:
2SF30ES
KR Part #:
PU2SF30ES
Weight:
11.80 lbs
Availability:
1
(0)Hollow shaft for mounting on motors. Stainless steel valve assemblies. Regulator unloader to protect the pump from excessive pressure. Brackets not included.
NOTE: This pump does NOT come with oil
Technical Specifications
Bore: 18 mm
Crankcase Capacity: 11.15 oz.
Inlet Port: 3/8 inch
Max GPM: 3
Max PSI: 1500
Max Temperature: 160 degrees F
RPM: 3450
Stroke: 4.5 mm
Product Description
1500PSI Direct Drive Plunger Pump
This pump is the customer's choice of the motorized unit or hollow shaft pumps only for direct mounting to gas engine or electric motor. 1500 PSI series consists of a hollow shafted pump that is designed to bolt directly to a c-face electric motor, providing easy compact installation.
Dimensions: 9.13" x 6.65" x 6.50"
Features:
- Ultimate portability - less than 11 pounds - less than 10" long.
- Unique spring loaded inlet valves and the flow through ceramic plungers provides a smooth, steady flow.
- Regulating Unloader is standard on each pump to assure system pressure control and pump protection.
- Please note that this pump does NOT come with oil - find authentic CAT Pumps Oil here.
Specifications:
- Max Flow: 3.0 GPM
- Max Pressure: 1500 PSI
- Inlet Port Size: 3/8" NPT(F)
- Discharge Port Size: 3/8" NPT(M)
- RPM: 3450
- Drive Type(s): Direct
- Material: Brass
